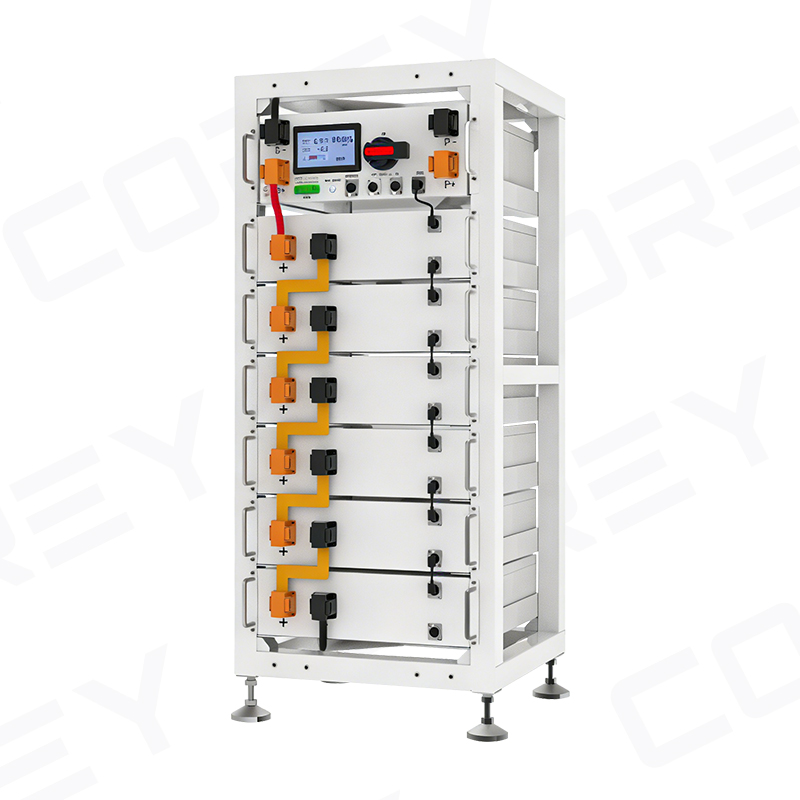

15.36kWh To 61.44kWh Rack Module High Voltage Battery Energy Storage System
Rack Module High Voltage Energy Storage System
| Specifications | Corey-15k |
| Corey-25k | Corey-30k | Corey-35k | Corey-40k | Corey-46k | Corey-51k | Corey-56k | Corey-61k |
| Product | 153.6V100AH | 204.8V100AH | 256.0V 100AH | 307.2V 100AH | 358.4V 100AH | 409.6V 100AH | 460.8V100AH | 512V 100AH | 563.2V 100AH | 614.4V 100AH |
| Nominal Voltage | 153.6V | 204.8V | 256.0V | 307.2V | 358.4V | 409.6V | 460.8V | 512V | 563.2V | 614.4V |
| Nominal Capacity | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH |
| Dimension moudle(mm) | 440*442*133*3 | 440*442*133*4 | 440*442*133*5 | 440*442*133*6 | 440*442*133*7 | 440*442*133*8 | 483*245*792*9 | 483*245*792*10 | 483*245*792*11 | 483*245*792*12 |
| Dimension RACK(mm) | 560*510*1210 | 560*510*1210 | 560*510*1210 | 560*510*1210 | 560*510*1638 | 560*510*1638 | 560*510*1780 | 560*510*1780 | 560*510*2060 | 560*510*2060 |
| Weight(kg) | 170 | 220 | 270 | 320 | 370 | 420 | 470 | 520 | 570 | 620 |
| Nominal Capacity(KWH) | 15.36 | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 | 46.08 | 51.2 | 56.32 | 61.44 |
| Discharge Cut-Off Voltage(V) | 132 | 176 | 220 | 264 | 308 | 352 | 396 | 440 | 484 | 528 |
| Charge Cut-Off Voltage(V) | 170.4 | 227.2 | 284 | 340.8 | 397.6 | 454.4 | 511.2 | 568 | 624.8 | 681.6 |
| Recommend Charge/Discharge Current(A) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Max. Charge/ Discharge working Current(A) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
The Corey Series Rack Module High Voltage Energy Storage System is a scalable, modular solution designed for commercial and industrial applications. With capacities ranging from 15.36kWh to 61.44kWh, this system supports peak shaving, backup power, and grid services. Certified with UN38.3, CE, IEC, UL, it ensures safety and compliance for global deployments.
High-Efficiency Design
Compact Structure: Space-saving design, supports installation at any angle, and ensures high compatibility with mainstream inverters and power supplies.
Long Cycle Life: Utilizes energy-storage grade cells with a cycle life exceeding 6,000 times (at 0.5C charge/discharge, 80% DOD) and a designed service life of over 15 years.
Automotive-Grade Safety: Equipped with automotive-grade energy-storage cells to ensure maximum reliability and safety.
Intelligent Communication & Scalability
Multi-Protocol Support: Compatible with RS485/RS232/CAN communication protocols for seamless integration into energy management systems.
Modular Scalability: Supports multi-cabinet parallel connections, scalable to MW-level power to meet large-scale energy storage demands.
Flexible Series Connection: Supports series connection of up to 16 units, adaptable to various high-voltage requirements.
Robust Environmental Adaptability
Wide Operating Temperature Range: Charging: 0°C to 50°C; Discharging: -10°C to 50°C; Transport/Storage: -20°C to 60°C.
Global Certifications: Fully certified with CE, IEC, UL, UN38.3, MSDS, and ROHS, complying with international safety and environmental standards.
Application Scenarios
Commercial Energy Storage: Peak shaving, demand charge management, and backup power systems.
Industrial Microgrids: Renewable energy integration and grid stability support.
Data Centers: High-reliability Uninterruptible Power Supply (UPS) solutions.
Why Choose the Corey Series?
UN38.3 Certified: Meets stringent air transport safety standards for hassle-free global logistics.
Modular Design: Allows flexible capacity expansion, significantly reducing initial investment costs.
15+ Year Lifespan: Minimizes replacement frequency and lowers long-term operational and maintenance (O&M) costs.
Frequently Asked Questions (FAQ)
Q: Does this system support off-grid operation?
A: Yes, the Corey Series can be paired with hybrid inverters to support both off-grid and on-grid operation modes.
Q: What is the maximum number of units that can be connected in series?
A: The system supports connecting up to 16 units in series, achieving a total voltage of up to 9.8kV (614.4V × 16).
Q: Do you offer customized solutions?
A: Yes, we support customization of capacity, voltage, and communication protocols to meet specific project requirements.
